Buckfastleigh Signal Box

GWR Type 7D Box, 25' x 11' Elevated 8'
Opened 1906 with Stud Frame, 27 Levers 5 1/4" Centres
40 lever VT 5-Bar Frame (4" Centres) installed in 2010
FPLs Stand Normally "Out"
Electic Key Token to Bishops Bridge, Train Staff and Ticket Working to Ashburton Junction when Bishops Bridge Swtiched Out
One Train Working With Staff To Ashburton

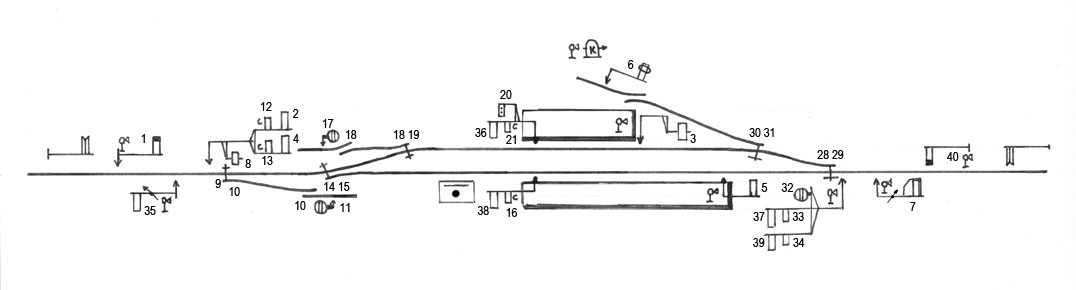

Illuminated Diagram
Closing Switch:- Nil
Box Closed 17-11-1958 to 2010

Two spare levers (22 - 27) retained for possible level crossing and wickets

Phase 1 - Direct replacement for Buckfastleigh "South"

Spares : 1 : 2 : 4 : 8 : 9 : 10 : 11 : 14 : 22 : 23 : 24 : 25 : 26 : 27

SpareCut Down Lever 1 Spare
SpareLever 2 Spare
Stop SignalLever 3 Up Loop Starting
SpareLever 4 Spare
Stop SignalLever 5 Down Platform To Up Main Starting
Stop SignalLever 6 Yard To Up Main Starting
Starting Locked By The BlockLever 7 Up Main Advance Starting
SpareLever 8 Spare
SpareLever 9 Spare
SpareLever 10 Spare
SpareLever 11 Spare
Stop SignalLever 12 Headshunt To Up Platform Disc
Stop SignalLever 13 Headshunt To Down Platform Disc
SpareLever 14 Spare
PointLever 15 Up Main / Down Platform
Stop SignalLever 16 Down Platform Starting Shunt Ahead ?
Stop SignalLever 17 Up Sidings To Up Loop Disc
PointLever 18 Up Sidings / Up Loop
FPLLever 19 FPL for 18a
Stop SignalLever 20 Up Platform To Up Sidings Disc
Stop SignalLever 21 Up Platform Down Starting Shunt Ahead
SpareLever 22 Spare
SpareLever 23 Spare
SpareLever 24 Spare
SpareLever 25 Spare
SpareLever 26 Spare
SpareLever 27 Spare
PointLever 28 Down Main / Up Loop
FPLLever 29 FPL for 28
PointLever 30 Up Loop / Yard
FPLLever 31 FPL for 30
Stop SignalLever 32 Down Main Inner Home To Yard Disc
Stop SignalLever 33 Down Main To Up Loop Inner Home Call On
Stop SignalLever 34 Down Main Inner Home Call On
Starting Locked By The BlockLever 35 Down Main Advance Starting
Stop SignalLever 36 Up Platform To Down Main Starting
Stop SignalLever 37 Down Main To Up Platform Inner Home
Stop SignalLever 38 Down Platform To Down Main Inner Home
Stop SignalLever 39 Down Main Inner Home
Stop SignalCut Down Lever 40 Down Main Home

Phase 2 - Site Development

Headshunt fully signalled for brake van rides, positive indications of line occupancy etc.

Spares 22 : 23 : 24 : 25 : 26 : 27

SpareLever 1 Spare
Stop SignalLever 2 Up Main Inner Home
Stop SignalLever 3 Up Loop Starting
Stop SignalLever 4 Up Main Inner Home To Down Platform
Stop SignalLever 5 Down Platform To Up Main Starting
Stop SignalLever 6 Yard To Up Main Starting
Starting Locked By The BlockLever 7 Up Main Advance Starting
Stop SignalLever 8 Up Main To Goods Yard
FPLLever 9 FPL for 10b
PointLever 10 Down Main / Goods Yard
Stop SignalLever 11 Goods Yard To Down Main Disc
Stop SignalLever 12 Up Main Inner Home Call On
Stop SignalLever 13 Up Main Inner Home To Down Platform Call On
FPLLever 14 FPL for 15
PointLever 15 Up Main / Down Platform
Stop SignalLever 16 Down Platform To Down Main Inner Home Call On
Stop SignalLever 17 Up Sidings To Up Loop Disc
PointLever 18 Up Sidings / Up Loop
FPLLever 19 FPL for 18a
Stop SignalLever 20 Up Loop To Up Sidings Backing
Stop SignalLever 21 Up Platform To Down Main Starting Call On
SpareLever 22 Spare
SpareLever 23 Spare
SpareLever 24 Spare
SpareLever 25 Spare
SpareLever 26 Spare
SpareLever 27 Spare
PointLever 28 Down Main / Up Loop
FPLLever 29 FPL for 28
PointLever 30 Up Loop / Yard
FPLLever 31 FPL for 30
Stop SignalLever 32 Down Main Inner Home To Yard Disc
Stop SignalLever 33 Down Main To Up Loop Inner Home Call On
Stop SignalLever 34 Down Main Inner Home Call On
SpareLever 35 Spare
Stop SignalLever 36 Up Platform To Down Main Starting
Stop SignalLever 37 Down Main To Up Platform Inner Home
Stop SignalLever 38 Down Platform To Down Main Inner Home
Stop SignalLever 39 Down Main Inner Home
Stop SignalCut Down Lever 40 Down Main Home

Phase 3 - Opening Of The Ashburton Extension

Buckfastleigh Signal Box - Opening Of The Ashburton Extension

Spares 22 : 23 : 24 : 25 : 26 : 27

Stop SignalLever 1 Up Main Home
Stop SignalLever 2 Up Main Inner Home
Stop SignalLever 3 Up Loop Starting
Stop SignalLever 4 Up Main Inner Home To Down Platform
Stop SignalLever 5 Down Platform To Up Main Starting
Stop SignalLever 6 Yard To Up Main Starting
Starting Locked By The BlockLever 7 Up Main Advance Starting
Stop SignalLever 8 Up Main To Goods Yard
FPLLever 9 FPL for 10b
PointLever 10 Down Main / Goods Yard
Stop SignalLever 11 Goods Yard To Down Main Disc
Stop SignalLever 12 Up Main Inner Home Call On
Stop SignalLever 13 Up Main Inner Home To Down Platform Call On
FPLLever 14 FPL for 15
PointLever 15 Up Main / Down Platform
Stop SignalLever 16 Down Platform To Down Main Inner Home Call On
Stop SignalLever 17 Up Sidings To Up Loop Disc
PointLever 18 Up Sidings / Up Loop
FPLLever 19 FPL for 18a
Stop SignalLever 20 Up Loop To Up Sidings Backing
Stop SignalLever 21 Up Platform To Down Main Starting Call On
SpareLever 22 Spare
SpareLever 23 Spare
SpareLever 24 Spare
SpareLever 25 Spare
SpareLever 26 Spare
SpareLever 27 Spare
PointLever 28 Down Main / Up Loop
FPLLever 29 FPL for 28
PointLever 30 Up Loop / Yard
FPLLever 31 FPL for 30
Stop SignalLever 32 Down Main Inner Home To Yard Disc
Stop SignalLever 33 Down Main To Up Loop Inner Home Call On
Stop SignalLever 34 Down Main Inner Home Call On
Starting Locked By The BlockLever 35 Down Main Advance Starting
Stop SignalLever 36 Up Platform To Down Main Starting
Stop SignalLever 37 Down Main To Up Platform Inner Home
Stop SignalLever 38 Down Platform To Down Main Inner Home
Stop SignalLever 39 Down Main Inner Home
Stop SignalCut Down Lever 40 Down Main Home
